Shimano

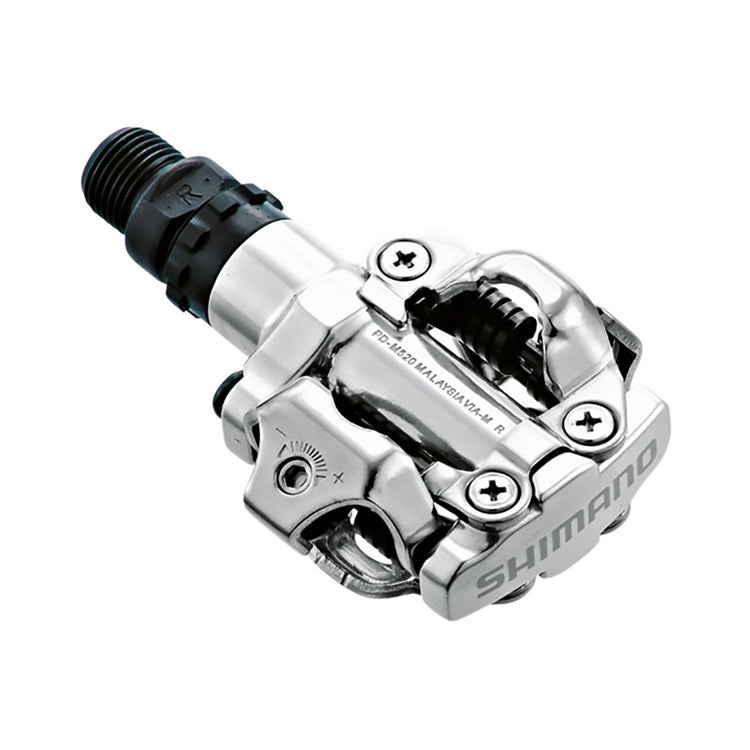

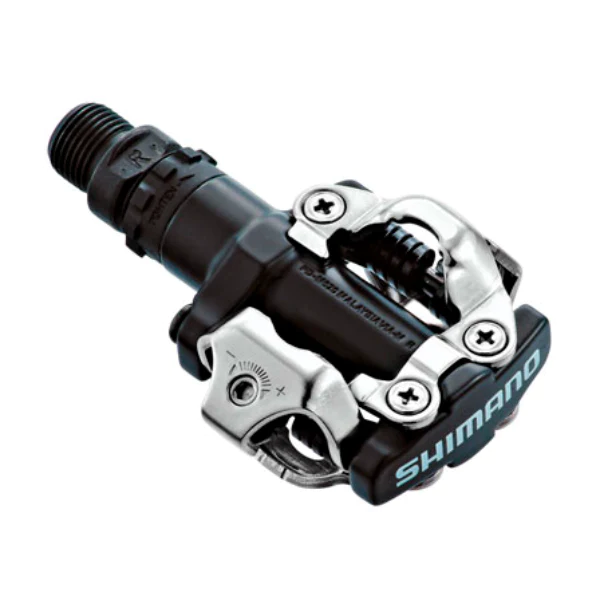

Pedals Shimano Pd-m520
Pedals Shimano Pd-m520
Couldn't load pickup availability
The Shimano PD‑M520 is a trusted, enduring choice among mountain bike and commuter pedals, celebrated for its durability, reliability, and outstanding value. First released in 2004, it remains a staple in 2025 thanks to its rugged construction and maintenance-friendly design.
Key Features
- Dual‑sided SPD mechanism for easy clipping in without worrying about pedal orientation
- Chrome‑moly spindle & sealed cartridge bearings, built for longevity and low maintenance
- Aluminium body with open binding, ideal for mud and debris ejection
- Adjustable spring tension (via Allen key) — customise clipping force to suit confidence and terrain
- Includes SM‑SH51 single‑release cleats, recessed for walkability when off-bike
Specifications
Feature |
Specification |
Body Material |
Precision aluminium body |
Spindle |
Heat‑treated chrome‑moly steel |
Bearings |
Sealed cartridge with cup‑and‑cone serviceable system |
Weight |
Approx. 374–380 g per pair |
Platform |
Modest footprint designed for SPD cleat; no flat side or cage |
Float |
4° (via SH55/51 cleats included) |
Tension Range |
Adjustable via 3 mm Allen bolt |
Mud Clearance |
Open design allows debris to fall through – ideal in muddy rides |
Cleats Included |
SM‑SH51 (black/protected single‑release) |
Colours |
Black or silver finishes |
Warranty & Service |
Cartridge bearings are user‑serviceable using Shimano TL‑PD40 tool |
💪 Performance & Value
The PD‑M520 has earned acclaim as a versatile, all‑rounder pedal suited to disciplines ranging from commuter and gravel to XC and trail riding. Reviewers praise its “bombproof” construction, dependable mud shedding, and the reassurance of Shimano’s legendary SPD retention system.
Durable yet cost-effective, this pedal offers lasting performance often eclipsing more expensive models. Though slightly heavier than premium options, many riders report years of trouble-free use with minimal upkeep.
🚵 Ideal For
- Mountain biking & gravel – simple, dependable retention with mud resistance
- Commuting – sealed bearings hold up to rain and daily wear; recessed cleats aid walking
- Beginner to enthusiast riders – user‑adjustable tension supports confidence building
- Budget-conscious cyclists – top-tier reliability at an affordable price
Bottom Line:
The Shimano PD‑M520 continues to be one of the best value clipless pedals on the market. With its resilient build, SPD familiarity, easy-service bearings, and three adjustable tension levels, it’s the perfect all-rounder for riders of all levels and terrains.
